DS-2102E with BND-DS2000A
Stock Available

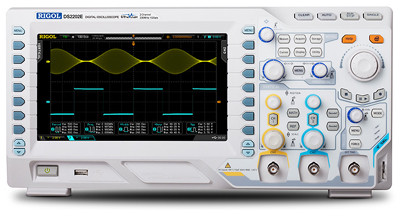

DS-2102E with BND-DS2000A

100MHz, 2CH, 1GS/s, 28MPTS, LARGE SCREEN

$912.00

Call for Price

The DS-2000E series are affordably priced oscilloscopes offering a class leading 28Mpts standard deep memory, wide vertical range, 50,000 wfms/s and 256 intensity graduated display.

SPECIAL OFFER: Includes Free BND-DS2000A

Specs

Bandwidth 100MHz
Channels 2
Sample Rate 1GS/s
Memory Depth 28Mpts Standard
Waveform Capture Rate 50,000 wfms/s
Vertical Scale 500uV/div to 10V/div
Realtime Waveform Recorded Maximum 65,000 frames standard
Intensity Grading Display Up to 256 levels
Interfaces USB Host, USB Device, LAN (LXI), AUX
Display 8 inch TFT WVGA
