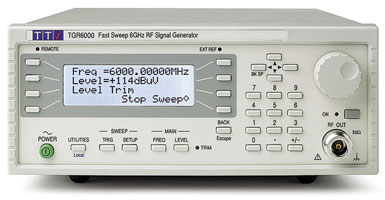

The TGR6000 is a low-cost RF signal generator with a maximum frequency of 6GHz. It is intended for CW (carrier wave) applications where modulation is not required.
Product Features
ADVANCED FEATURES
• 10Hz setability, +/-1ppm freq stability
• Locking to external freq standard
• -110dBm to +7dBm amplitude, 0.1dB steps
• Fast stepping sweep with dwell times down to 10ms
• List sweep of up to 1000 points of amplitude vs frequency
• User compensation tables for specific test set-ups
• Storage for 12 generator set-ups and 16 sweep lists
• Significantly lower cost than other 6GHz generators
Specs
Frequency Range 10MHz to 6000MHz
Setting Resolution 10Hz by direct keyboard entry, or in user-set increments of 10Hz to 999·999MHz
Display Resolution 10Hz
Phase Noise
500MHz Carrier
<-110dBc/Hz (typ) @ 20kHz offset; <-120dBc/Hz (typ) @ 100kHz
3GHz Carrier
<-95dBc/Hz (typ) @ 20kHz offset;
<-110dBc/Hz (typ) @ 100kHz offset
6GHz Carrier
<-89dBc/Hz (typ) @ 20kHz offset;
<-104dBc/Hz (typ) @ 100kHz offset
Residual FM 12Hz at 500MHz carrier
Equivalent peak deviation for 300Hz to 3·4kHz B/W:
Settling Time
Interfaces RS232, USB, BPIB, LAN
