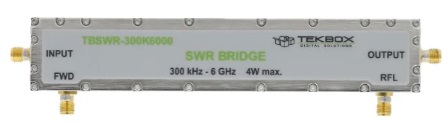

TBSWR-300K6000
50 Ω GENERAL PURPOSE VSWR BRIDGE
$1,036.00
Ask a QuestionregardingTBSWR-300K6000
The TBSWR-300K6000 VSWR – bridge is designed for general purpose forward / reverse power measurements. The bridge combines the wide frequency range and directivity of a directional bridge and the low insertion loss of a directional coupler.
The TBSWR-300K6000 is characterized in the frequency range from 300 kHz to 6 GHz. The low insertion loss allows inline RF power measurements, and a variety of other applications. The insertion loss over the frequency range is typically between 1.7 and 2.6 dB, which is significantly smaller than the average 7 dB associated with VSWR – bridges.
Specs
Characterized frequency range: 300 kHz – 6 GHz
Directivity:
300 kHz – 700 kHz > 25 dB
700 kHz – 4 GHz > 30 dB
4 GHz – 6 GHz > 20 dB
Coupling:
300 kHz – 3 GHz -20 dB ± 1 dB
3 GHz – 6 GHz -19 dB …-16 dB
Insertion loss:
300 kHz – 1 GHz < 1.8 dB
1 GHz – 6 GHz < 2.6 dB
Max. power:
300 kHz – 6 GHz 4 W CW *)
*) Output shorted or open: max. 1 W
Operating temperature range: – 20 °C to + 40 °C
Impedance: 50 Ω
Port matching: > 20 dB
RF connectors: SMA-female
Dimensions: 170 mm x 40 mm x 32 mm
Weight: 280 g
