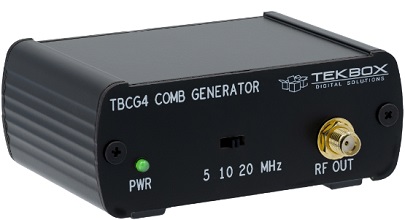

The TBCG4 is a general purpose harmonic comb generator with a switchable base frequency of 20 MHz, 10 MHz or 5 MHz. It generates a flat comb spectrum up to 1 GHz. The comb generator is
powered via a USB C socket on the rear panel. The TBCG4 is designed and characterized to serve asa versatile lab tool for measuring cable resonances, shielding effectiveness, filters, crosstalk, EMC test setups and more. Comb generators are commonly utilized as a general purpose source for wideband RF signals or narrow pulses with a fast rise time.
Specs
Base frequencies: 5 MHz, 10 MHz, 25 MHz, selected via slide-switch on front panel
Characterized comb spectrum: 5 MHz – 1 GHz
Output amplitude of 20 MHz comb spectrum: – 19 dBm +/- 3 dB
Output amplitude of 10 MHz comb spectrum: – 28 dBm +/- 3 dB
Output amplitude of 5 MHz comb spectrum: – 38 dBm +/- 3 dB
Spectrum flatness from 5 MHz to 1 GHz: < 10 dB
Pulse rise time: < 300 ps
Output: 50 Ohm, SMA female
Power supply: USB C
Current consumption: 120 mA
Dimensions, L x W x H: 56 mm x 81 mm x 33 mm
Weight: 95g
