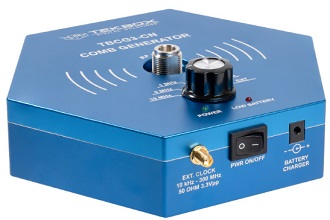

TBCG3-CN

COMB GENERATOR

$2,129.00

Call for Price

The TBCG3-CN comb generator is primarily designed to verify conducted emission test set ups. It is a useful tool to validate correct operation of the LISN, correct set-up and correct configuration of the spectrum analyzer.

A rotary switch allows you to choose between five fixed comb frequencies and an external excitation input with a frequency range of 5 kHz to 300 MHz.

The comb generator comes with country specific adapter cables, which plug into the DUT socket of the (unpowered!) LISN.

The device is powered by four AA NiMH batteries and includes an external charger.

The TBCG3-CN produces a comb spectrum with approximately 8 dB flatness in the frequency range up to 1.5 GHz and has a 50 Ohm output with a female N-connector.

The housing is milled from solid aluminium. A ¼” – 20 UNC thread in the comb panel accepts standard tripod bolts.

Specs

Specified bandwidth: 1.5 GHz
Flatness of the comb spectrum: 8 dB typically
Output impedance: 50 Ohm
Output power: 66 dBµV @ 10 MHz f comb ; decreasing 6 dB with every fcomb /2
Amplitude stability: < 0.2 dB; Aging: < 0.5 dB over 12 months
Output connector: N-female
Selectable, fixed comb frequencies: 100 kHz, 500 kHz, 1 MHz, 5 MHz, 10 MHz
Frequency stability: 50 ppm
External excitation input: 5 kHz – 300 MHz @ square input signal; 3.3 Vpp max
100 kHz – 300 MHz @ sinus input signal; 3.3 Vpp max
Input impedance: 50 Ohm
Input connector: SMA-female
Current consumption: 70 mA
Indicators: Power On LED, Low Battery LED
Power supply: 4 x AA NiMH (e.g. Varta Mignon 2700, not supplied)
Charger: external; Ansmann ACS110
Operation time: battery capacity / 70 mA
Temperature range: -20°C to +45 °C
Housing diameter: 180 mm
Housing height: 60 mm
Weight: 1250 g
