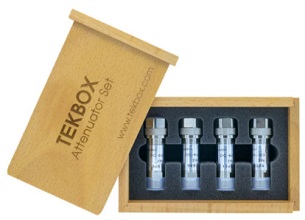

The TBAS4 RF attenuator set consists of 3dB, 6dB, 10dB and 20dB, 6 GHz/2W N-attenuators in a beech wood box.
Specs
Frequency range: DC – 6GHz
VSWR; 3, 6, 10, 20 dB: < 1.2
Tolerance; 3, 6, 10, 20 dB: <+/- 0.3 dB
Power rating: 2W @ -55 to 40°C; up to 70°C with 50% power de-rating
Connectors: N-male / N-female; bidirectional
Dimensions: 150mm x 95mm x 45mm
Weight: 490g
