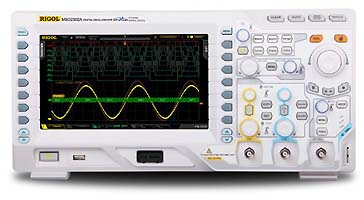

MSO-2302A with OPTIONS BUNDLE
300MHz, 2CH, 2GS/s, 14MPTS, LARGE SCREEN
$1,778.00
Ask a QuestionregardingMSO-2302A with OPTIONS BUNDLE
The new MSO-2000A series build on the successful DS-2000A series DSOs with the addition of 16 digital channels to offer high performance, price competitive MSOs.
Now includes MSO/DS2000A FREE option bundle - MEM-DS2000, AT-DS2000, SD-DS2000 and CAN-DS2000.
Specs
Bandwidth 300MHz
Channels 2
Sample Rate 2GS/s
Memory Depth 14Mpts Standard, 56Mpts Optional
16 Digital Channels
Channels 2
Sample Rate 2GS/s
Memory Depth 14Mpts Standard, 56Mpts Optional
16 Digital Channels
Waveform Capture Rate 50,000 wfms/s
Vertical Scale 500uV/div to 10V/div
Realtime Waveform Recorded Maximum 65,000 frames standard
Intensity Grading Display Up to 256 levels
Interfaces USB Host, USB Device, LAN (LXI), AUX
Display 8 inch TFT WVGA
Vertical Scale 500uV/div to 10V/div
Realtime Waveform Recorded Maximum 65,000 frames standard
Intensity Grading Display Up to 256 levels
Interfaces USB Host, USB Device, LAN (LXI), AUX
Display 8 inch TFT WVGA
