The number of 1500 V photovoltaic installations is rapidly increasing and so is the need for electrical safety testing of such installations.
The Metrel MI-3115 tests 1,500V DC and I/V up to 24kW rating. The unit is also unique in that it safely tests insulation resistance of strings at 1,500V DC. The irradiation and cell temperature are measured in real time with the Wi-Fi wireless remote unit.
The MI-3115 PV Safety Tester also comes together with a P1405 5-year Metrel Smart Cloud Pro subscription (available free of charge until the end of 2024). The subscription offers access to two new online (cloud) services: Metrel Cloud Reports and Metrel Cloud Storage (24 GB). At this moment, they offer only creation and storage of professional test reports (for the MI 3115 PV Analyser).
Measuring Functions
• 1500 V insulation resistance of strings;
• Continuity of PE conductors;
• Polarity test;
• Short Circuit Current (Isc) and Open Circuit Voltage (Voc) tests;
• I/V characteristics;
• Wireless acquisition of irradiation and temperature of PV modules.

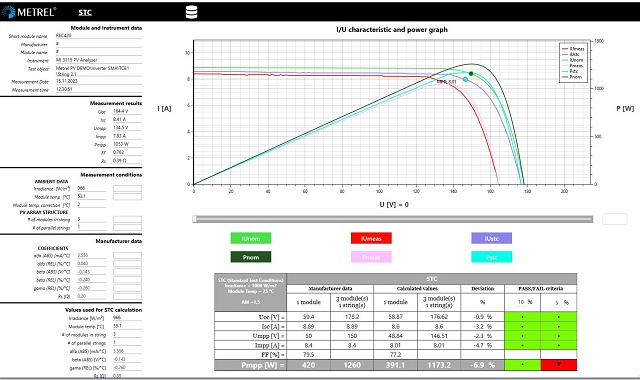

Example I-V Graph Generated by MI-3115
Product Features
• Insulation and I/V measurement of 1500 V PV systems in one instrument.
• Capacitive measurement method.
• Wireless (Wi-Fi) remote unit for measuring and logging of irradiation and cell temperature of PV modules.
• Auto test for Category1 tests.
• Calculation of STC values and comparison with nominal data.
• Correction of previously wrong entered parameters on already executed measurement or group of measurements.
• The instrument is controlled via a large colour touch screen display from which the user can prepare and start the selected test or measurement, store results, and review them in numerical and graphical form.
• Memory organizer, operations on single or group of measurements, search functionality.
• PV modules database handler.
• AUTOSEQUENCE.
• PC SW Metrel ES Manager enables pre-preparation of measurement structure and measurements, upload or download that structure and then reviews the results, enables advanced analysis of the I/U curve, PV modules DB explorer and generation of professional report.

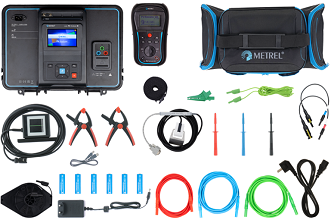

MI-3115 Standard Set
