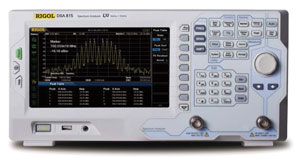

The market leading low price of the DSA-815 makes it an ideal entry point 1.5GHz spectrum analyser for industry, education and hobbyists.
Specs
Frequency Range 9kHz – 1.5GHz
Frequency Resolution 1Hz
Resolution Bandwidth 10Hz to 1MHz in 1-3-10 sequence
Displayed Average Noise Level (DANL) -135dBm
Phase Noise -80dBc/Hz at 10kHz
Overall Amplitude Accuracy <1.5dB
Preamplifier & AM/FM Demodulation
Display TFT LCD 800×480, 8”
Printer Support PictBridge
Interface LAN/USB host, USB device, VGA or GPIB (option)
Internal Flash Disk Storage
Options
1.5GHz Tracking Generator
EMI Filter & Quasi Peak Detector
VSWR Measurement Kit
Advanced Measurement Kit
