TR 348
$2,219.00
Rec. retail price incl GST

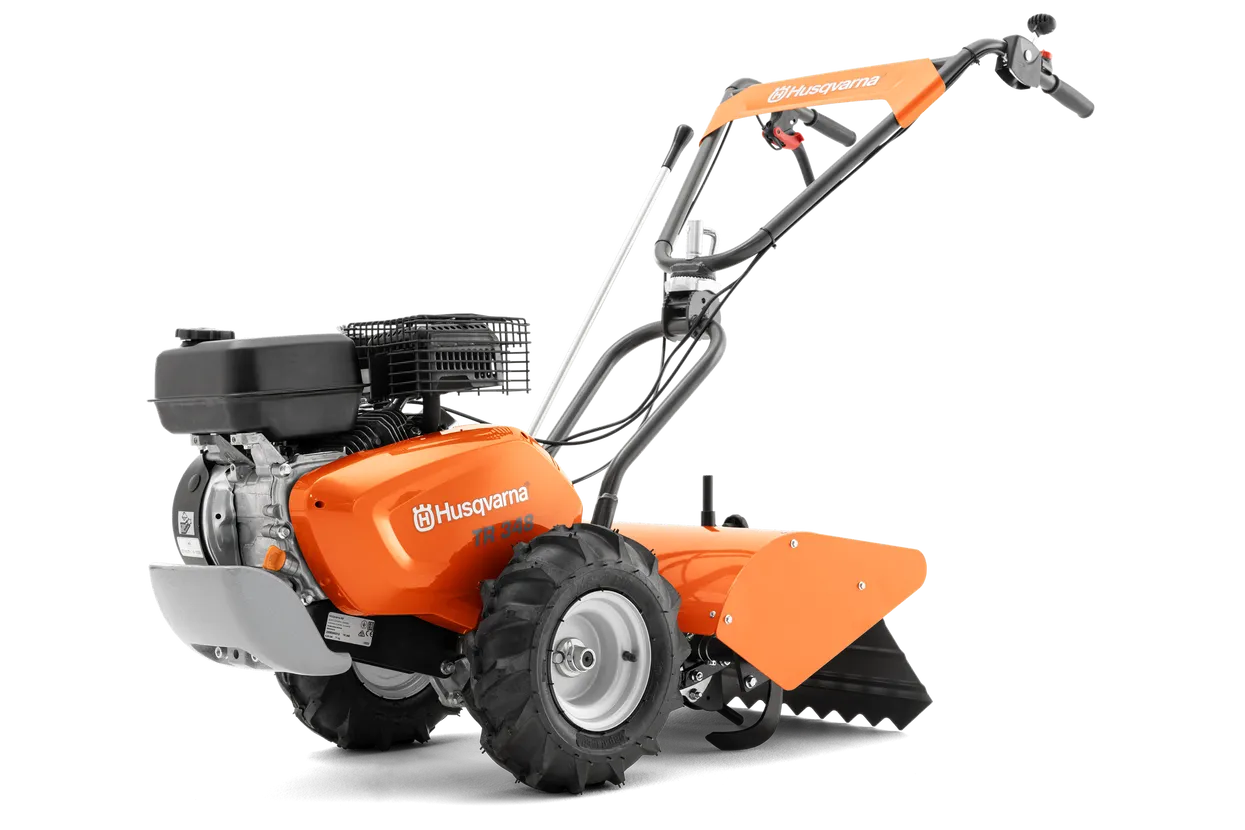

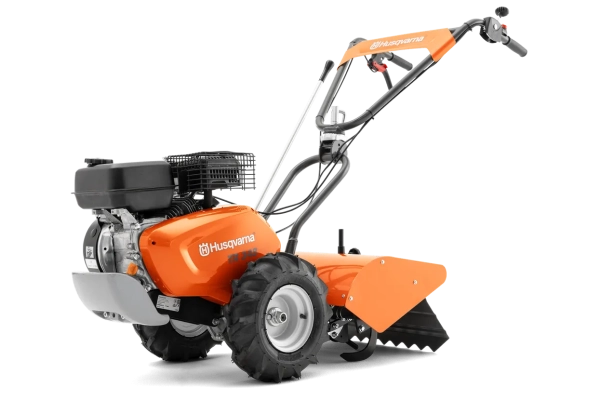

The TR 348 is a light-weighted, compact and easy to use tiller with great manoeuvrability. Equipped with high-quality transmission and Heli coiled tines and 48 cm working width it offers both great performance and durability.
Adjustable handlebar
Adjustable handlebar, both horizontaly and vertically, for best working position.
Drag bar
Easy-adjust drag bar, for balance in different working conditions.
Foldable handlebar
For easy storage and transport.
Tine shield
Minimizes debris spray from the rotating tines.
Handlebar-mounted gear selection
Ergonomic handle with easy-access controls.
Reverse gearbox
Improves maneuverability and control.
| Engine | TR 348 PETROL TILLER Rear tine tiller Art no: 970 65 28‑01 |
|---|---|
Engine name | R210 |
Net power at preset rpm Energy1 | 4 kW |
Net power at preset rpm | 3,300 rpm |
Air filter type | Oil bath |
Fuel tank volume | 3.6 l |
Power/fuel type | Petrol |
Cylinder displacement | 212 cm³ |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 932.85 g/kWh |
| Equipment | |
Rubber wheels | Included |
Transport wheel/s | Not available |
Foldable handlebar | Yes |
Horizontally adjustable handlebar | Yes |
Vertically adjustable handlebar | Yes |
| Capacity | |
Working width | 48 cm |
Working depth | 15 cm |
Tine diameter | 300 mm |
Number of tines | 4 |
Rotational speed (min/max) min | 103 rpm |
Rotational speed (min/max) max | 207 rpm |
Cultivator type | Rear-tine |
| Transmission | |
Transmission type | Chain/Gear |
Transmission steps reverse | 1 |
Transmission steps forward | 2 |
| Dimensions | |
Weight (complete product w/o side packed articles) | 71 kg |
