RC 320Ts AWD
$19,999.00

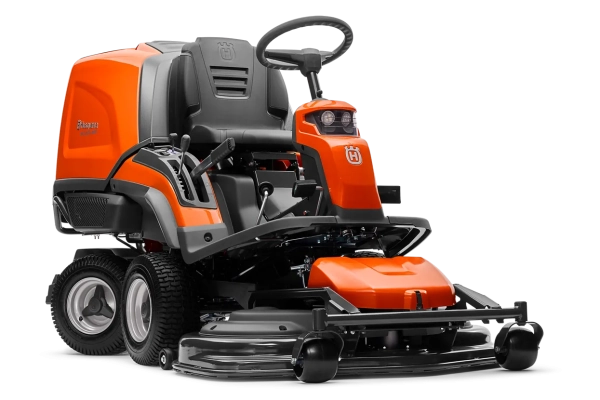

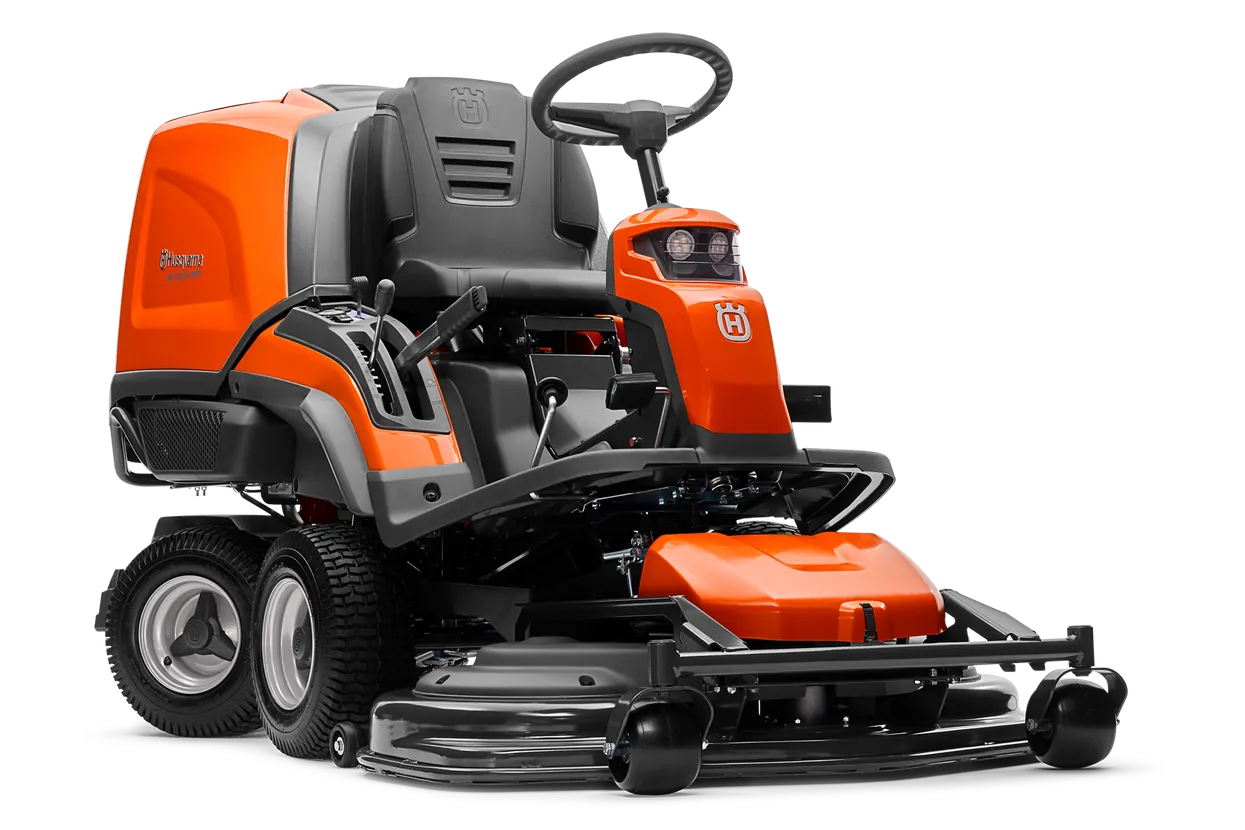

Husqvarna Rider RC 320Ts AWD offers all-wheel drive and high collection capacity to mow large gardens. The ride-on lawn mower has an innovative clog-free collection system that feeds the grass clippings directly from the front-mounted cutting deck into the 300-litre bag. Automatic compaction allows more grass in the collector, so you can drive longer before emptying. Cutting height adjustment and emptying can be performed without getting off the machine, contributing to both comfort and efficient work. All-wheel drive provides the power needed to manoeuvrein all types of conditions, and with articulated powered steering, the RC 320Ts can also handle tight turns. The cutting deck can be tilted 90 degrees to be easily accessible for service and cleaning.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
ACTech
The clog-free ACTech collection system with automatic packing allows more grass in the collector for fewer emptyings and increased run time.
Turn key start
Easy to get operating under any weather conditions. No choking needed, just turn the key and go.
Empty collector from seat
The integrated collector quickly empties from the driver's seat for continuous, uninterrupted mowing.
Non-collecting mode
Switch between collecting and non-collecting mode with the push of a button without leaving the driver's seat.
Articulated steering
The articulated steering gives excellent manoeuvrability and facilitates driving around obstacles such as trees and bushes.
Power steering
Power-assisted steering makes driving less strenuous and more enjoyable.
Pedal-operated hydrostatic transmission
Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.
Easy-access service points
The hood can be tilted up into service position for easy access during service and maintenance.
Easy-access controls
Controls are easy accessible for effective and ergonomic handling.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.
Service position
The cutting deck can be tilted up into service position for easy access during cleaning or service.
Four large wheels
Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Automatic blade engagement
The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Engine behind driver
The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines.
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
Hour meter with service minder
Hour meter with service minder indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.
LED headlights
Gives over 50% larger lighted area compared to traditional incandescent lights. For safer operation in darker conditions.
12V socket outlet
12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.
Easy-access cutting height lever
The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier.
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface.
Transparent fuel tank
Large fuel tank with transparent panel allows easy checking of fuel level.
Attachment frame
Easy to shift between cutting decks and front-mounted attachments, such as broom and flail mower.
Engine | RC 320Ts AWD with 103cm Combi Deck Art no: 967 62 88‑11 | RC 320Ts AWD with 112cm Combi Deck Art no: 967 62 88‑14 |
---|---|---|
Power/fuel type | Petrol | Petrol |
Net power at preset rpm Energy1 | 12.6 kW | 12.6 kW |
Net power at preset rpm | 3,100 rpm | 3,100 rpm |
Engine brand | Briggs & Stratton | Briggs & Stratton |
Motor/engine manufacturer | Briggs & Stratton | Briggs & Stratton |
Engine name | Endurance Series | Endurance Series |
Cylinder displacement | 656 cm³ | 656 cm³ |
Cylinders | 2 | 2 |
Engine cooling | Air | Air |
Engine lubrication type | Full pressure | Full pressure |
Oil filter | Yes | Yes |
Emission | ||
Exhaust emissions (CO₂ EU V)2 | 830 g/kWh | 830 g/kWh |
Battery | ||
Battery capacity | 5.5 Ah | 5.5 Ah |
Battery type | Li-Ion | Li-Ion |
Battery pack weight | 1.1 kg | 1.1 kg |
Battery manufacturer | BMZ | BMZ |
Cutting deck | ||
Uncut circle | 60 cm | 60 cm |
Cutting width, min | 103 cm | 103 cm |
Cutting width, max | 112 cm | 112 cm |
Cutting height min | 25 mm | 25 mm |
Cutting height max | 75 mm | 75 mm |
Blade engagement | Automatic | Automatic |
Collector volume | 300 l | 300 l |
Dimensions | ||
Tyre dimensions, front | 16x6,5-8 | 16x6,5-8 |
Tyre dimensions, rear | 16x6,5-8 | 16x6,5-8 |
Wheelbase | 90.3 cm | 90.3 cm |
Ground clearance | 90 mm | 90 mm |
Base machine, length | 208.9 cm | 208.9 cm |
Base machine, width | 103 cm | 103 cm |
Base machine, height | 128.4 cm | 128.4 cm |
Weight (excl. cutting equipment) | 328 kg | 328 kg |
Drive system | ||
Transmission type | Hydrostatic | Hydrostatic |
Transmission manufacturer, rear | Tuff Torq | Tuff Torq |
Drive method | Dual pedal-operation | Dual pedal-operation |
Speed forward max | 8 km/h | 8 km/h |
Speed reverse max | 7 km/h | 7 km/h |
Transmission manufacturer, front | Tuff Torq | Tuff Torq |
Transmission model, front | KTM13T | KTM13T |
Transmission model, rear | K664M | K664M |
Equipment | ||
Seat suspension | Yes | Yes |
Hour meter type | Digital | Digital |
Seat material | PU | PU |
Seat back height | High | High |
Foldable seat | Yes | Yes |
Parking brake, type | Disc | Disc |
Vibration | ||
Vibration level steering wheel | 2.6 m/s² | 2.6 m/s² |
Vibration level seat | 0.7 m/s² | 0.7 m/s² |
Sound and noise | ||
Sound pressure level at operators ear | 85 dB(A) | 85 dB(A) |
Sound power level, guaranteed (LWA) | 100 dB(A) | 100 dB(A) |
Sound power level, measured | 99 dB(A) | 99 dB(A) |
