LC 519AP
$1,079.00

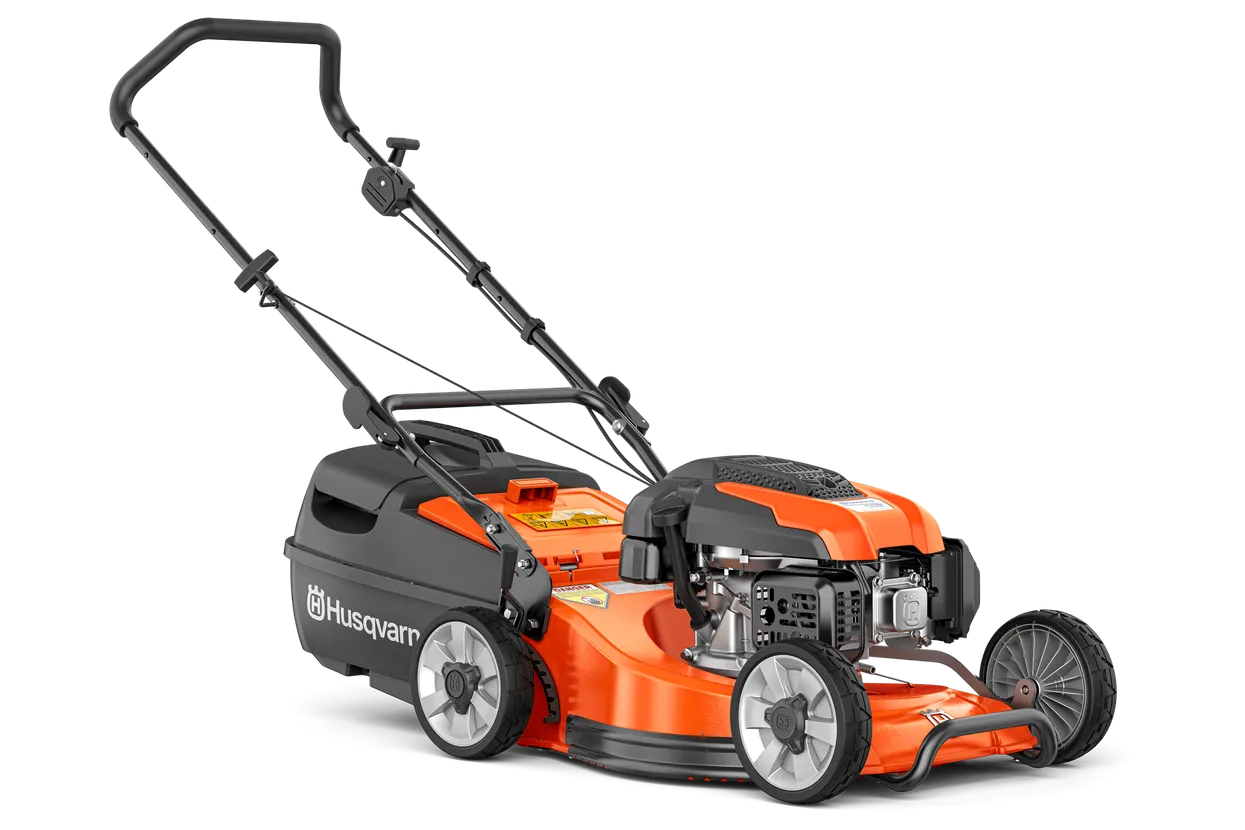

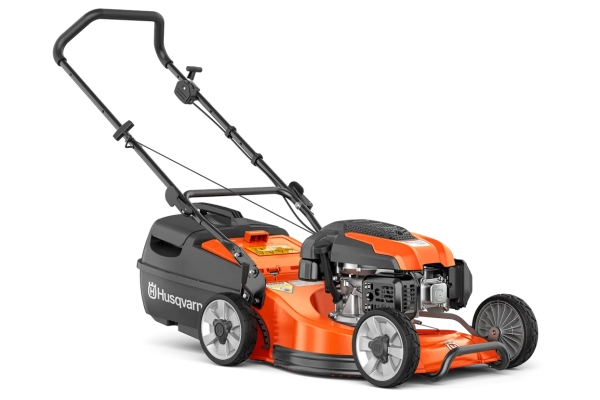

A commercial lawnmower with a large 48cm (19”) aluminum cutting deck and large hard plastic collector. Equipped with the fully commercial and high-specified four-stroke engine Husqvarna HS 166AP. Features include dual ball bearing wheels, comfort grip folding handle with quick action cam locks and eight cutting heights. Comes complete with mulch insert.
Husqvarna HS 166AP engine
HS 166AP, a powerful and fully commercial walk-behind engine from Husqvarna. Designed for high reliability and easy starting. High specified components to withstand tough daily usage and for guarantee longest possible service-life.
Foldable handle
Quick action cam lock levers for fast and easy transport or storage.
Comfort handles
Upturned handles provide optimal hand and arm position while cutting plus comfort grips help reduce vibration and fatigue.
Two-in-one cutting system
Excellent versatility thanks to the two different cutting systems: Collection and BioClip® (mulching). Supplied standard with a grass collector and BioClip® mulch insert.
Cutting height adjustment
Quick and easy adjustment of the grass cutting height. One lever controls the whole deck.
Efficient cutting
The combination of cutting deck design and four swing back blades ensures a smooth and efficient cut while filling the catcher completely.
Robust design
Heavy duty cutting deck with steel cutting height segment. U shaped lower handle support and dual ball bearing wheels secured by locking nuts ensures durability in even the toughest conditions.
| Engine | LC 519AP LAWN MOWER Art no: 970 60 92‑01 |
|---|---|
Net power at preset rpm Energy1 | 2.75 kW |
Net power at preset rpm | 2,900 rpm |
Engine brand | Husqvarna |
Engine name | HS 166AP |
Cylinder displacement | 166 cm³ |
Engine lubrication type | Splash |
Engine cooling | Air |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 922.38 g/kWh |
| Material | |
Cutting deck material | Aluminium |
Rims, material | Plastic |
| Cutting deck | |
Cutting methods | Collection/BioClip® |
Cutting width | 48 cm |
BioClip® kit | Not available as accessory (NOT AVAILABLE) |
BioClip® plug | Included |
Cutting height steps | 10 |
Cutting height adjustment | Central |
Cutting height max | 80 mm |
Cutting height min | 16 mm |
| Drive system | |
Drive system | Push |
Drive wheels | N/A |
Speed forward max | 0 km/h |
Speed forward min | 0 km/h |
| Equipment | |
Collector type | Rigid box |
Collector volume | 44 l |
Handle type | Up-turned |
Handle height adjustment | None |
Wheel bearing, front/rear | Yes/Yes |
Foldable handle | Yes |
Soft grip | Yes |
Side adjustable handle | No |
Throttle control | Yes |
Water hose connection | No |
Blade brake clutch (BBC) | No |
| Dimensions | |
Wheel size, Front | 210 mm |
Wheel size, Rear | 210 mm |
Weight (complete product w/o side packed articles) | 29.5 kg |
Wheelbase | 55 cm |
| Sound and noise | |
Sound pressure level at operators ear | 83 dB(A) |
Sound power level, measured | 94 dB(A) |
Sound power level, guaranteed (LWA) | 96 dB(A) |
| Vibration | |
Vibrations handlebar | 9.9 m/s² |
