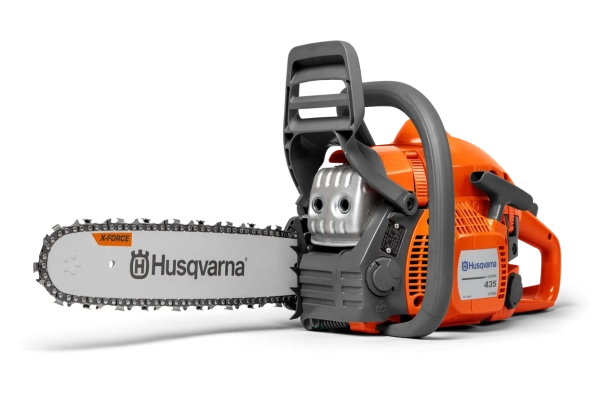

435 e-series
$779.00
Second generation lightweight and efficient all-round saw, ideal for those looking for a chainsaw that is exceptionally easy to start and manoeuvre. Starts easily also with a slower pull, comes with slimmer saw body and flip-up tank caps. Featuring X-Torq® engine for lower fuel consumption and reduced emission levels. Equipped with Smart Start®, fuel pump and Auto return stop switch for easier starting.
Flip-Up Fuel Cap
The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Felling Marks
Dedicated marks for increased felling precision
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
Powerful and Efficient X-TORQ® Engine
Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Snap-Lock Cylinder Cover
Saves time when changing spark plugs and cleaning
Inertia chain brake
Effective inertia-activated chain brake
Easy to start
Combined start/stop switch, Smart Start® and air purge make the saw very easy to start.
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
| Engine | 15" .325" H30 SN, Spring assist, Felt, all markets Art no: 970 55 99‑36 |
|---|---|
Chain speed at max power | 17.3 m/s |
Cylinder displacement | 40.9 cm³ |
Output shaft power1 | 1.6 kW |
| Equipment | |
Recommended bar length, min | 33 cm |
Pitch | .325" |
Recommended bar length, max | 45 cm |
Chain type | H30 |
Bar length | 38 cm |
Bar length (inch) | 15 in |
| Dimensions | |
Weight (excl. cutting equipment) | 4.4 kg |
| Sound and noise | |
Sound pressure level at operators ear | 102 dB(A) |
Sound power level, guaranteed (LWA) | 114 dB(A) |
| Vibration | |
Equivalent vibration level (ahv, eq) rear handle | 3.8 m/s² |
Equivalent vibration level (ahv, eq) front handle | 3.1 m/s² |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 813 g/kWh |
