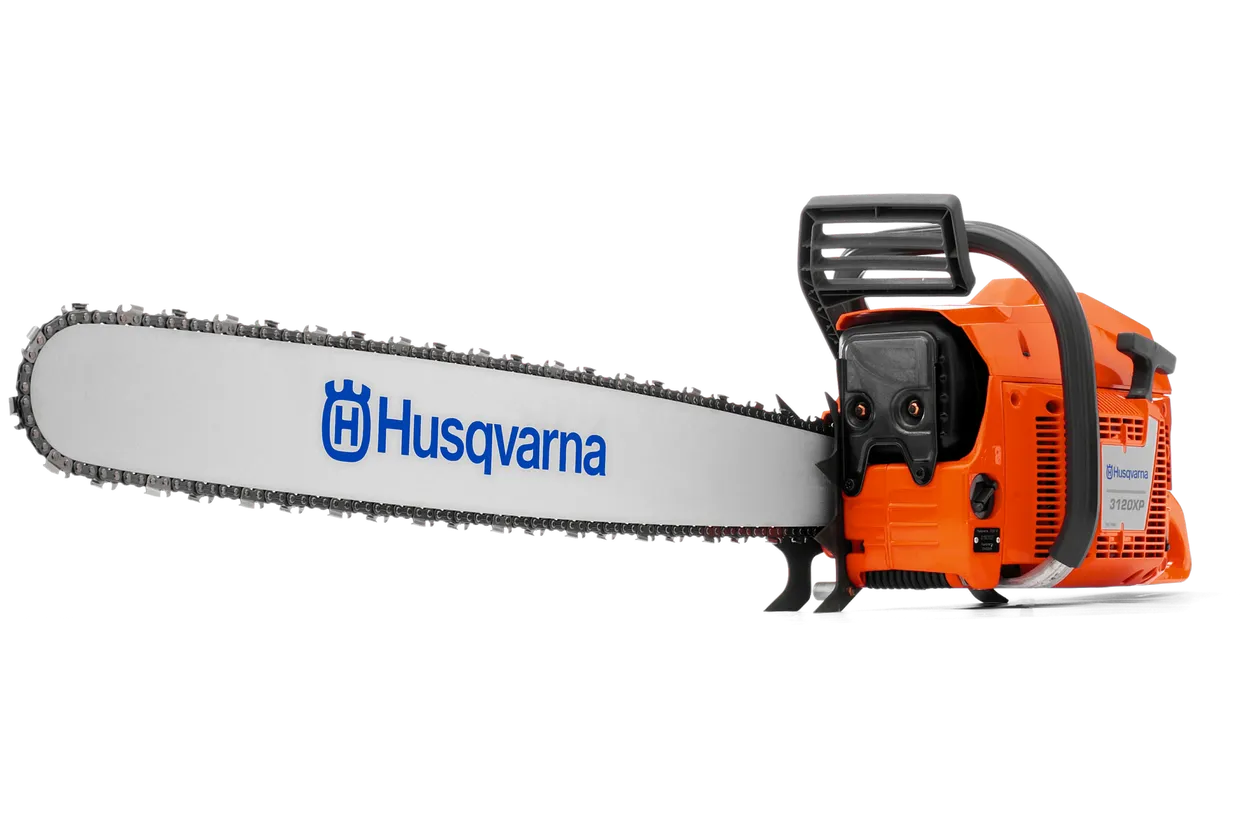

3120 XP®
$3,269.00
One of the world’s most powerful saws. Built for professionals who fell the largest dimensions of trees and extremely hard types of wood. Good ergonomics and excellent power-to-weight ratio. Easy to start thanks to Smart Start®. Equipped with a chain brake, chain catcher and right hand guard for maximum safety, the slim, lightweight body with a high centre of gravity makes it easy to carry and use.
Adjustable oil pump
Adjustable oil pump allows you to adjust chain lubrication to suit all working applications.
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Magnesium crankcase
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Three-piece crankshaft
Forged three-piece crankshaft giving maximum durability for the toughest applications.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Felling marks
Distinct and coloured felling marks for better felling precision.
Inertia chain brake
Effective inertia-activated chain brake
| Engine | 3120XP - 28" RSN .404" 1,6 mm H57 Art no: 965 96 07‑62 | 3120XP-32" RSN-.404" -AU/NZ Art no: 965 96 07‑63 | 3120XP-36" RSN"-.404" -AU/NZ Art no: 965 96 07‑64 | 3120XP-42" RSN-.404" -AU/NZ Art no: 965 96 07‑65 | 3120XP CHAINSAW 24 3/8 HN Art no: 966 82 53‑01 | 3120XP - 24", 3/8", .058" Art no: 966 82 54‑01 |
|---|---|---|---|---|---|---|
Chain speed at max power | 20.1 m/s | 20.1 m/s | 20.1 m/s | 20.1 m/s | 20.1 m/s | 20.1 m/s |
Cylinder displacement | 118.8 cm³ | 118.8 cm³ | 118.8 cm³ | 118.8 cm³ | 118.8 cm³ | 118.8 cm³ |
Output shaft power1 | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW | 6.2 kW |
| Equipment | ||||||
Recommended bar length, min | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
Pitch | .404" | .404" | .404" | .404" | .404" | .404" |
Recommended bar length, max | 105 cm | 105 cm | 105 cm | 105 cm | 105 cm | 105 cm |
Chain type | H64 | H64 | ||||
Bar length | 70 cm | 81 cm | 90 cm | 105 cm | 60 cm | 70 cm |
Bar length (inch) | 28 in | 32 in | 36 in | 42 in | 24 in | 28 in |
| Dimensions | ||||||
Weight (excl. cutting equipment) | 10.4 kg | 10.4 kg | 10.4 kg | 10.4 kg | 10.4 kg | 10.4 kg |
| Sound and noise | ||||||
Sound pressure level at operators ear | 102 dB(A) | 102 dB(A) | 102 dB(A) | 102 dB(A) | 102 dB(A) | 102 dB(A) |
Sound power level, guaranteed (LWA) | 116 dB(A) | 116 dB(A) | 116 dB(A) | 116 dB(A) | 116 dB(A) | 116 dB(A) |
| Vibration | ||||||
Equivalent vibration level (ahv, eq) rear handle | 7.8 m/s² | 7.8 m/s² | 7.8 m/s² | 7.8 m/s² | 7.8 m/s² | 7.8 m/s² |
Equivalent vibration level (ahv, eq) front handle | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² | 6.7 m/s² |
