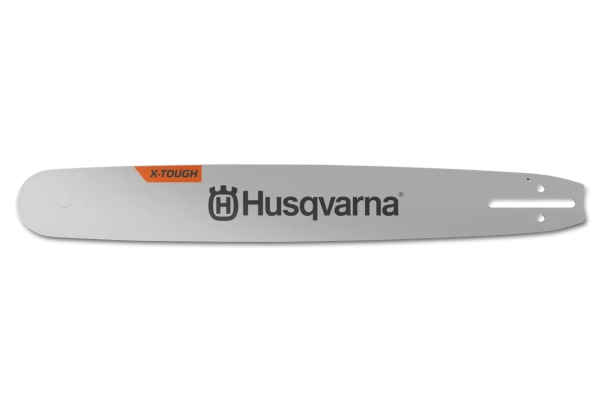

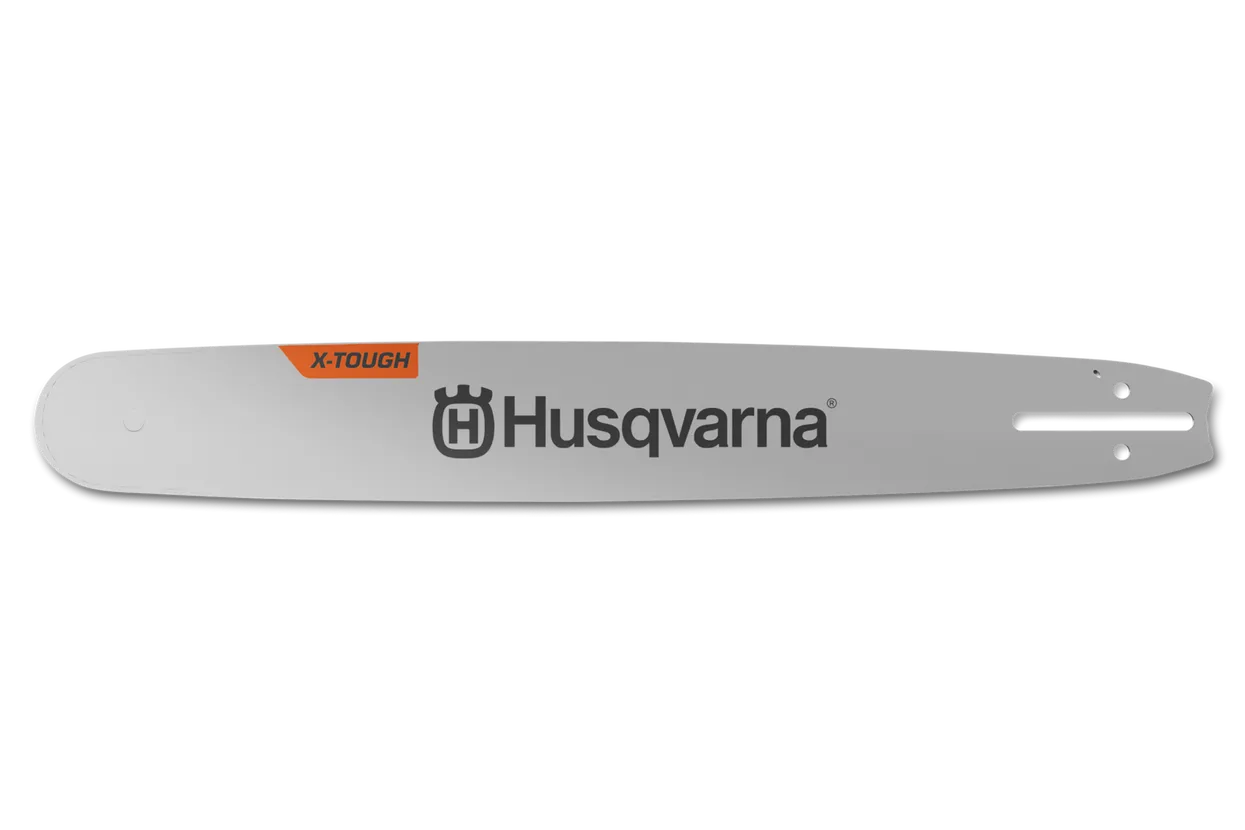

Guide Bar .058″ | Large Bar Mount (D009)
Price range: $150.00 through $205.00
Rec. retail price incl GST
Solid bars are used for hard species of timber, thick bark and in very sandy, dusty or sooty conditions. Bars are epoxy coated to protect against scratches and corrosion.
| Product data | Guide Bar 18" .058" | Large Bar Mount (D009) Art no: 596 69 08‑68 | Guide Bar 20" .058" | Large Bar Mount (D009) Art no: 596 69 08‑72 | Guide Bar 24" 3/8" .058" 84DL | HN Large bar mount Art no: 596 69 08‑84 | Guide Bar 28" .058" | Large Bar Mount (D009) Art no: 596 69 08‑92 |
|---|---|---|---|---|
Bar length (inch) | 18 in | 20 in | 24 in | 28 in |
Bar length | 45 cm | 50 cm | 60 cm | 70 cm |
Pitch | 3/8" | 3/8" | 3/8" | 3/8" |
Gauge | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
Bar type | Solid | Solid | Solid | Solid |
Nose type | Hard nose | Hard nose | Hard nose | Hard nose |
Bar mount type | HLM | HLM | HLM | HLM |
